【洲际建设】Intercontinental construction PCB factory project case

Our company possesses extensive expertise in the production processes of electronics and semiconductors, including chip manufacturing. With over 20 years of design and construction experience, we thoroughly understand the various constant temperature/humidity standards and cleanliness requirements for production environments.
Our company possesses extensive expertise in the production processes of electronics and semiconductors, including chip manufacturing. With over 20 years of design and construction experience, we thoroughly understand the various constant temperature/humidity standards and cleanliness requirements for production environments.
Our company possesses extensive expertise in the production processes of electronics and semiconductors, including chip manufacturing. With over 20 years of design and construction experience, we thoroughly understand the various constant temperature/humidity standards and cleanliness requirements for production environments.
Our company possesses extensive expertise in the production processes of electronics and semiconductors, including chip manufacturing. With over 20 years of design and construction experience, we thoroughly understand the various constant temperature/humidity standards and cleanliness requirements for production environments.
Our company possesses extensive expertise in the production processes of electronics and semiconductors, including chip manufacturing. With over 20 years of design and construction experience, we thoroughly understand the various constant temperature/humidity standards and cleanliness requirements for production environments.
Our company possesses extensive expertise in the production processes of electronics and semiconductors, including chip manufacturing. With over 20 years of design and construction experience, we thoroughly understand the various constant temperature/humidity standards and cleanliness requirements for production environments.

Piping system

Semiconductor workshop

Test shop

Production environment

Industry-Leading Enterprise

Use Cases

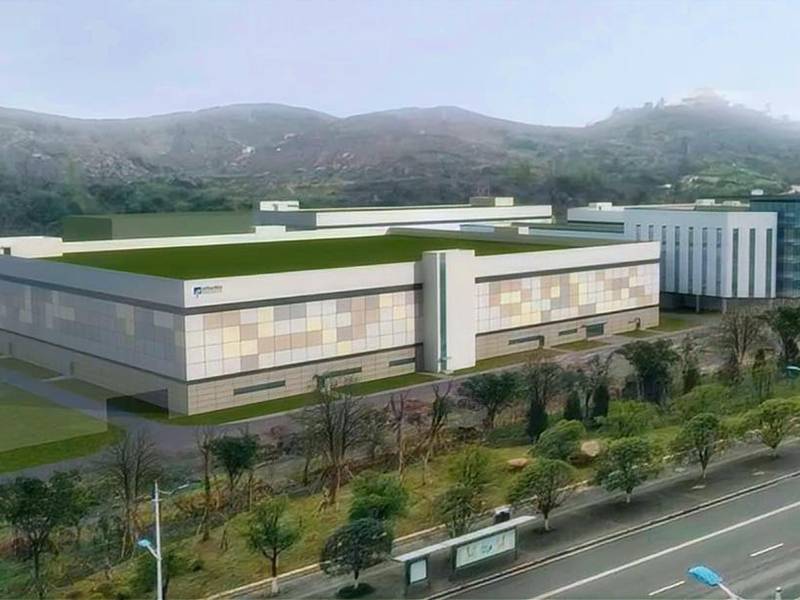

Project Cases of Class 10 and Class 100 Cleanrooms for Semiconductor Chips

Cleanliness level：Class 10, Class 100

Industry Type：Semiconductor Chips

Contracting Type：EPC general contracting

Viiyong Electronic Clean Plant Project

Cleanliness level：Class 10K

Industry Type：MLCC

Contracting Type：EPC general contracting

12800 square meter semiconductor clean room

Cleanliness level：Class 100、Class 1000、Class 10K

Industry Type：Chip

Contracting Type：EPC general contracting

Our Model

E

Nationwide Project Delivery

With 1,000,000㎡ of delivered electronics industry cleanroom space, our flagship projects include: CEC Advanced Packaging Facility, Han's Laser Precision Manufacturing Campus, CSOT Gen 10.5 LCD Fab, ZEISS Optical Nanotech Center, BYD Battery MegaFactory.
P

Integrated Cleanroom Solution

Delivering Process-Tailored, Energy-Optimized Facility Solutions.
C

Proven Expertise with Industry Recognition

Specialized in Mega-Scale EPC Projects (with Owner Financing Solutions) for High-Precision Manufacturing. HeJie Tech: China's Hard-Tech Containment Authority.

Cleanroom EPC Turnkey Delivery

After two decades of specialization, we have evolved into a full-cycle EPC contractor for high-tech industrial environments, encompassing project consulting, planning, design, procurement, construction, commissioning, and lifecycle support.

Book Now

Solution

Delivering Process-Optimized, Energy-Efficient Environmental Solutions

View Full Size

Cleanroom Architecture for Industrial Electronics

Universal Simplified Edition

A hyper-precision industry where minute environmental or operational variations can compromise product quality, with air purity and stable temperature/humidity being critical to yield rates and final product performance.

Primary Functions of Cleanrooms
Contamination Control Principles
Purification parameters

THE
FUNCTION

Functional objective

Function 1: Filter and recirculate air to maintain a cleanroom environment

Function 2: Condition air to maintain a constant temperature and humidity environment

Function 3: Establish positive pressure environment to prevent external air contamination
THE
PRINCIPLE OF

Principle

Air intake → Primary filtration → Air conditioning → Intermediate filtration → FFU (Fan Filter Unit) propulsion → Ductwork distribution → HEPA/ULPA filtration (terminal high-efficiency filtration) → Laminar airflow supply into room → Contaminant removal (capturing particles/bacteria) → Air return through grilles → Recirculation to primary filtration. This closed-loop cycle achieves continuous air purification.
THE
PARAMETER

Parameter

1. Pressure differential: Main workshop ≥5Pa relative to adjacent rooms.

2. Average Air Velocity: Class 100 (ISO 5): 0.3–0.5 m/s; Noise Level: ≤65 dB(A); Fresh Air Supply: 10%–30% of total supply air volume; Illuminance: ≥300 lux.

Class 100 to Class 300,000 structural design and fabrication process:

1. Cleanroom wall and ceiling panels are typically made of 50mm-thick sandwich color steel plates, known for their aesthetic appeal and high rigidity. Rounded corners, door frames, and window frames are typically constructed with specialized aluminum oxide profiles.

2. The flooring may utilize epoxy self-leveling coatings or high-grade wear-resistant plastic flooring. For areas requiring anti-static properties, electrostatic discharge (ESD)-protected types shall be selected.

3. Air supply and return ducts shall be constructed with hot-dip galvanized steel plates, lined with flame-retardant PF foamed plastic insulation boards for optimal thermal and cleanliness performance.

4. HEPA filter units shall feature stainless steel frames for aesthetic cleanliness, with perforated panels made of powder-coated aluminum plates that are rust-proof, dust-resistant, and easy to clean.
