Case Studies

SELECTED CASE

Integrated Circuit

Case of Junya Precision FPC Clean Plant Construction Project

Customer introduction：The company signed the key plant construction project of Longnan Junya Precisi...

Precision electronic products

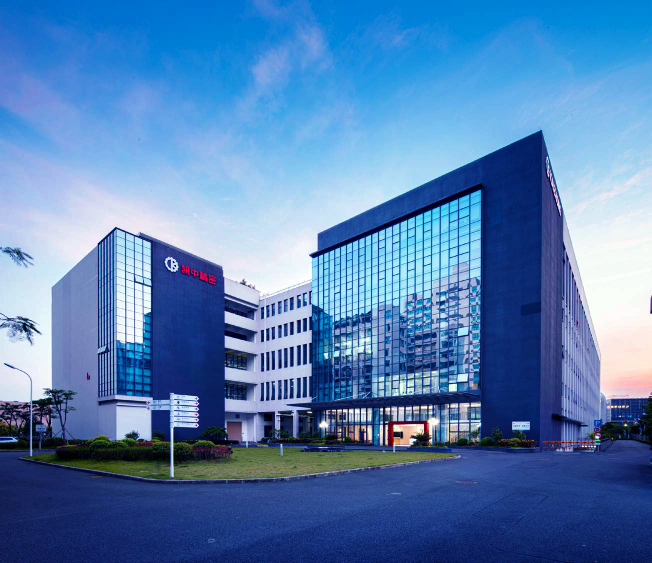

Case of Kaizhong Precision Purification Project

Customer introduction：Kaizhong Precision is a state-level high-tech enterprise, a supplier of precis...

Automotive Electronics

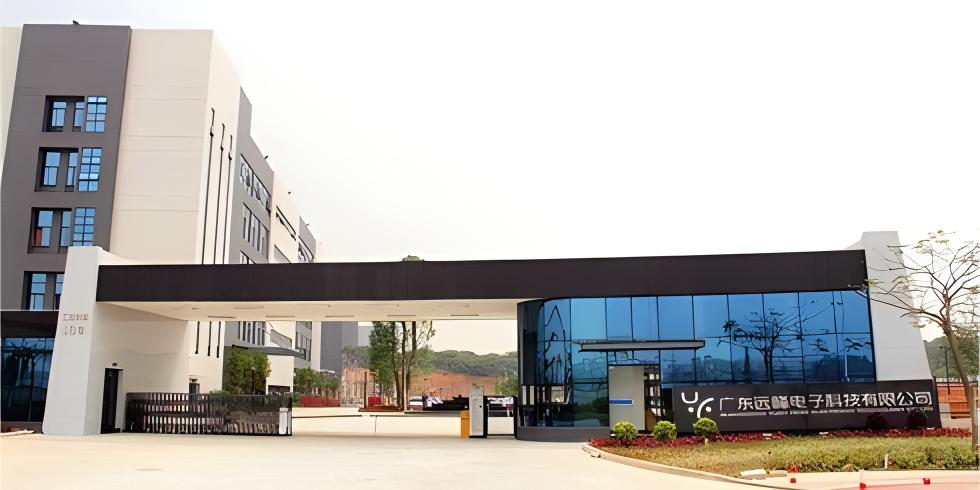

Case of yuanfeng Technology Automotive Electronics Clean Workshop Project

Customer introduction：The company successfully signed the EPC general contracting project of clean e...

Automation components

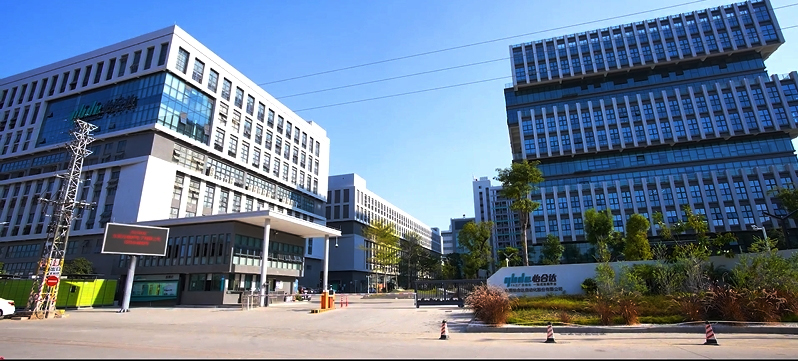

Construction case of Yiheda automatic electromechanical purification project

Customer introduction：The company successfully signed the contract project of mechanical and electri...

More Cases →

Industry-Specific Cleanrooms

Printed Circuit Board (PCB)
Touch Module
Mobile phone cover
Camera
Power Module
sensor
Optoelectronic components

The company has rich experience in general contracting of electromechanical purification projects in high-tech and high-end electronic manufacturing plants, involving integrated professional engineering services such as plant planning, design, procurement, construction and maintenance, which are widely used in semiconductor, flat panel display, PCB, LED, optical lens and other manufacturing industries.

Industry-Leading Enterprise

Use Cases

14300 square IC clean workshop

Cleanliness level：Class 1000 Class 10K

Industry Type：Mobile phone cover

Contracting Type：EPC general contracting

7500-square-meter IC clean workshop

Cleanliness level：Class 1000、Class 10K

Industry Type：electrical equipment

Contracting Type：EPC general contracting

5700 square IC clean workshop

Cleanliness level：Class 1000、Class 10K

Industry Type：Mobile phone cover

Contracting Type：EPC general contracting

Solution

Delivering Process-Optimized, Energy-Efficient Environmental Solutions

View Full Size

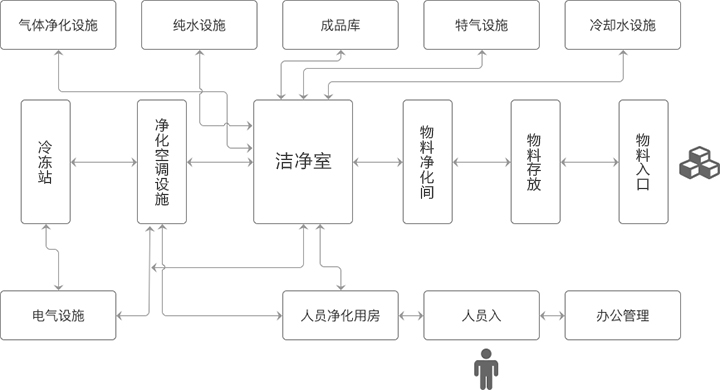

Cleanroom Architecture for Industrial Electronics

Universal Simplified Edition

A hyper-precision industry where minute environmental or operational variations can compromise product quality, with air purity and stable temperature/humidity being critical to yield rates and final product performance.

Primary Functions of Cleanrooms
Contamination Control Principles
Purification parameters

THE
FUNCTION

Functional objective

Function 1: Filter and recirculate air to maintain a cleanroom environment

Function 2: Condition air to maintain a constant temperature and humidity environment

Function 3: Establish positive pressure environment to prevent external air contamination
THE
PRINCIPLE OF

Principle

Air intake → Primary filtration → Air conditioning → Intermediate filtration → FFU (Fan Filter Unit) propulsion → Ductwork distribution → HEPA/ULPA filtration (terminal high-efficiency filtration) → Laminar airflow supply into room → Contaminant removal (capturing particles/bacteria) → Air return through grilles → Recirculation to primary filtration. This closed-loop cycle achieves continuous air purification.
THE
PARAMETER

Parameter

1. Pressure differential: Main workshop ≥5Pa relative to adjacent rooms.

2. Average Air Velocity: Class 100 (ISO 5): 0.3–0.5 m/s; Noise Level: ≤65 dB(A); Fresh Air Supply: 10%–30% of total supply air volume; Illuminance: ≥300 lux.

Class 100 to Class 300,000 structural design and fabrication process:

1. Cleanroom wall and ceiling panels are typically made of 50mm-thick sandwich color steel plates, known for their aesthetic appeal and high rigidity. Rounded corners, door frames, and window frames are typically constructed with specialized aluminum oxide profiles.

2. The flooring may utilize epoxy self-leveling coatings or high-grade wear-resistant plastic flooring. For areas requiring anti-static properties, electrostatic discharge (ESD)-protected types shall be selected.

3. Air supply and return ducts shall be constructed with hot-dip galvanized steel plates, lined with flame-retardant PF foamed plastic insulation boards for optimal thermal and cleanliness performance.

4. HEPA filter units shall feature stainless steel frames for aesthetic cleanliness, with perforated panels made of powder-coated aluminum plates that are rust-proof, dust-resistant, and easy to clean.
