【洲际建设】Intercontinental construction OLED factory project case

Case Studies

SELECTED CASE

Precision electronic products

Construction case of Jinfu large-scale clean plant

Customer introduction：The company signed the EPC project of large-scale electronic display materials...

Optical lens products

Carl Zeiss (optical lens) purification project case

Customer introduction：Carl Zeiss Group (Carl Zeiss AG) is a well-known multinational company in the ...

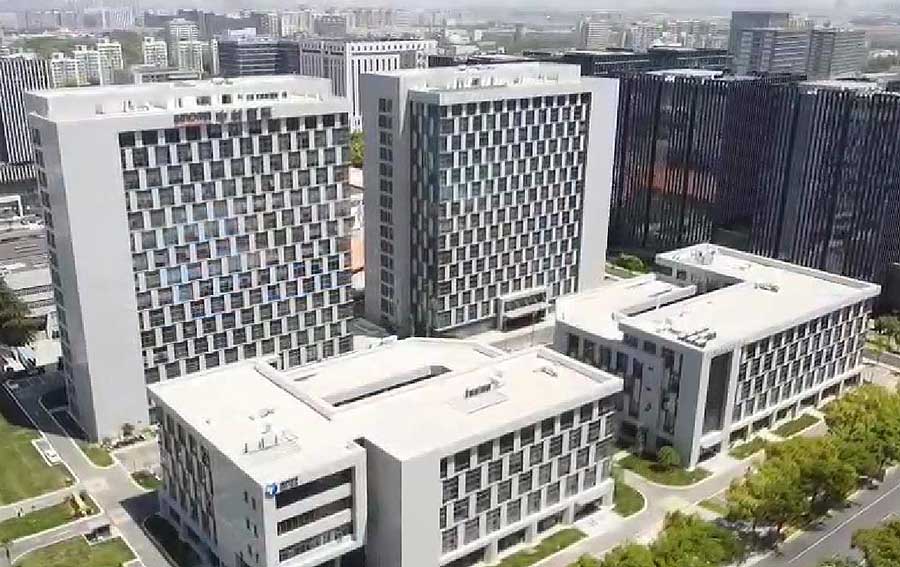

Case of Guoke Huanyu (Nanjing) Clean Plant Project

Customer introduction：The company has successfully signed the EPC contract for the construction of l...

Photoelectric touch screen products

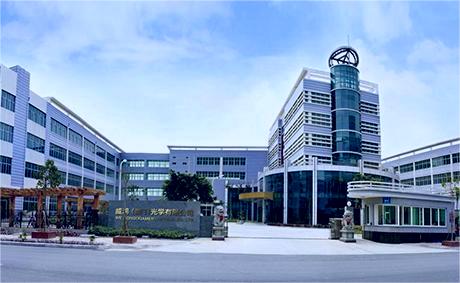

Case of Weihong Optical Purification Project

Customer introduction：Weihong (Xiamen) Optical Co., Ltd. is a company specializing in the production...

More Cases →

Industry-Specific Cleanrooms

AMOLED
TFT-LCD
LENS
Polarizer
LED epiwafer
display materials
Display terminal

In the field of electronic cleanroom engineering, the company has the ability to implement AMC prevention and control (shifting the focus of process environment demand from micro particle pollution to smaller gas-phase molecular pollutants after nano process), airflow organization simulation, ultra pure gas, ultra pure water, and verification for anti vibration machines, and has completed multiple ultra large, ultra high, ultra precision, and ultra pure cleanroom system projects.

Industry-Leading Enterprise

Use Cases

Yuhao Optical New Material Cleanroom Project

Cleanliness level：Class 10K

Industry Type：Optoelectronic materials

Contracting Type：EPC general contracting

8500 square photoelectric clean workshop

Cleanliness level：Class 1000、Class 10K

Industry Type：AMOLED

Contracting Type：EPC general contracting

Photoelectric clean workshop of 12700 square meters

Cleanliness level：Class 100、Class 1000、Class 10K

Industry Type：Optoelectronic touch screen

Contracting Type：EPC general contracting

Solution

Delivering Process-Optimized, Energy-Efficient Environmental Solutions

View Full Size

Cleanroom Architecture for Industrial Electronics

Universal Simplified Edition

A hyper-precision industry where minute environmental or operational variations can compromise product quality, with air purity and stable temperature/humidity being critical to yield rates and final product performance.

Primary Functions of Cleanrooms
Contamination Control Principles
Purification parameters

THE
FUNCTION

Functional objective

Function 1: Filter and recirculate air to maintain a cleanroom environment

Function 2: Condition air to maintain a constant temperature and humidity environment

Function 3: Establish positive pressure environment to prevent external air contamination
THE
PRINCIPLE OF

Principle

Air intake → Primary filtration → Air conditioning → Intermediate filtration → FFU (Fan Filter Unit) propulsion → Ductwork distribution → HEPA/ULPA filtration (terminal high-efficiency filtration) → Laminar airflow supply into room → Contaminant removal (capturing particles/bacteria) → Air return through grilles → Recirculation to primary filtration. This closed-loop cycle achieves continuous air purification.
THE
PARAMETER

Parameter

1. Pressure differential: Main workshop ≥5Pa relative to adjacent rooms.

2. Average Air Velocity: Class 100 (ISO 5): 0.3–0.5 m/s; Noise Level: ≤65 dB(A); Fresh Air Supply: 10%–30% of total supply air volume; Illuminance: ≥300 lux.

Class 100 to Class 300,000 structural design and fabrication process:

1. Cleanroom wall and ceiling panels are typically made of 50mm-thick sandwich color steel plates, known for their aesthetic appeal and high rigidity. Rounded corners, door frames, and window frames are typically constructed with specialized aluminum oxide profiles.

2. The flooring may utilize epoxy self-leveling coatings or high-grade wear-resistant plastic flooring. For areas requiring anti-static properties, electrostatic discharge (ESD)-protected types shall be selected.

3. Air supply and return ducts shall be constructed with hot-dip galvanized steel plates, lined with flame-retardant PF foamed plastic insulation boards for optimal thermal and cleanliness performance.

4. HEPA filter units shall feature stainless steel frames for aesthetic cleanliness, with perforated panels made of powder-coated aluminum plates that are rust-proof, dust-resistant, and easy to clean.
